Aquanomix Water Reuse Systems
Aquanomix’s treatment skids are engineered to filter and disinfect harvested rainwater, greywater, foundation, storm and process for reuse as cooling tower, toilet, water features, and irrigation makeup water. Aquanomix skids feature a controls system to monitor onboard diagnostics and integrate with an existing building management system. The controls system comes with a programmable touchscreen and remote access capability via Internet connection.

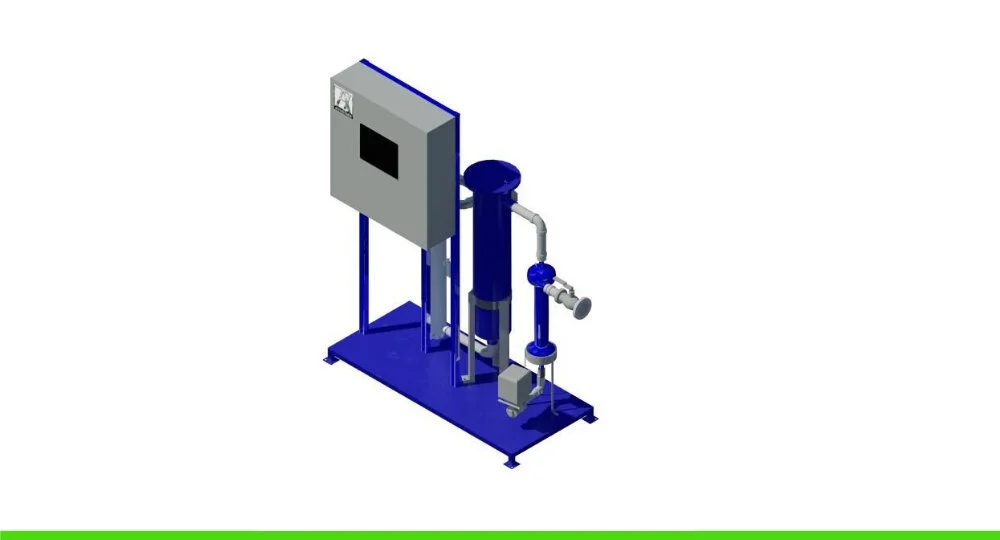

All components are skid-mounted, pre-wired, pre-piped, and sized to meet project parameters. Standard treatment skid includes
a centrifugal separator and a bag filter for filtration
an ultraviolet lamp for disinfection
Water filtration and disinfection techniques can be customized as needed. Aquanomix also offers additional water reclamation and reuse system options, such as cistern, booster pump, and hydropneumatic tank selection and sourcing services, and controls system upgrades.
Our water reuses systems are proven, state-of-the-art systems for water reclamation. The system processes and then directs water for use in non-potable applications, including cooling towers, toilets, and irrigation.
The water running through an Aquanomix water reclamation and reuse system is monitored by an automated controls platform resulting in proper water quality delivery for intended application. It is compatible to enable easy integration with building management systems. The system employs environmentally-sensitive technologies such as ultraviolet water disinfection and filtration.

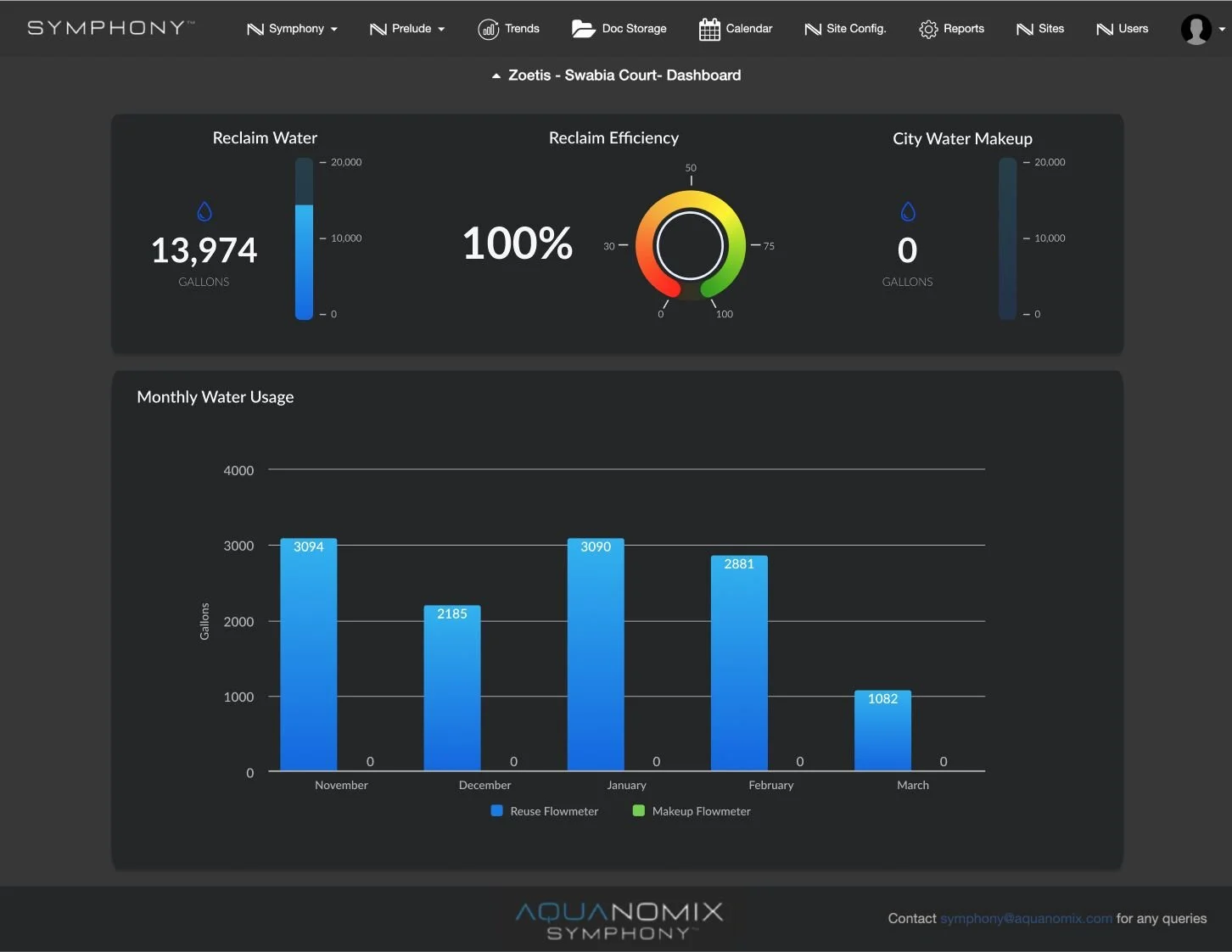

Symphony Software, Reuse System
“Zero gallons used! Shout out to our Zoetis partners for their skilled engineering and installation of the project's water reclamation system. Zoetis is able to collect, filter, and monitor captured rainwater for repurposing on the property. To date, this innovative collaboration has resulted in 100% efficient use of rainwater with zero gallons of supplemented city water.
Great job by Peak Systems Engineering, Aquanomix, and Choate Construction Company.
Cushman & Wakefield
SEPI [A Division of TranSystems]
Lee & Associates Commercial Real Estate Services
Redline Design Group”
Source:
Wendy Bridgham, CHOATE Construction (LinkedIn post)
